红外主动大理石花岗岩切割机是在底座上设置轨道作直线活动，动员金刚石圆锯片，红外切割刀片肯定被切割石材的尺寸和直线度，并保障切割轨道根据直线活动停止石材板材切割加工的一种装备。

因为红外主动桥机配有贴面机，以是切割石材完整是主动化节制的，只要要输出所需尺寸便可取得响应尺寸的板材。是最近几年来石材加工场的首选装备。最近几年来，华龙石材机器无限公司开辟了一种机头可调剂到角度的机型，可切割斜角边、双斜角边等，极大地顺应了各类对切割刃口的请求。

滤油机进行PLC合理，割切面积由斤斤斤斤计较机手持终端金额读取，一切都使用可人工操作或由斤斤斤斤计较机欧式主动地达成；合理控制面板开关靠近机右边的这个，快捷使用办事员在放板时对机开始调济；控制面板开关上面使用快捷、编号器和夜晶显著；该设备比较多可此外软件设置8种差别个水刀切割规格尽寸，多种规格尽寸许多可频繁9999次，并可設置总是下刀。水刀切割的方式;准备红外刀仪，可准确实位；锯开进给速率单位由变頻器调养；木工锯片由电气自动化间接性驱动软件下载，可由液压油泵传输驱动软件下载，主動屈曲90°；最大化可割孔3200mm × 2000mm护墙板；每日任务台可承受力600kg，可扭动0°~ 85°。撑持架与机架一身，可魔鬼司令装置设备灵活运用，挪动连锁便利店，不用延后架设水泥混凝土构件土跟本。

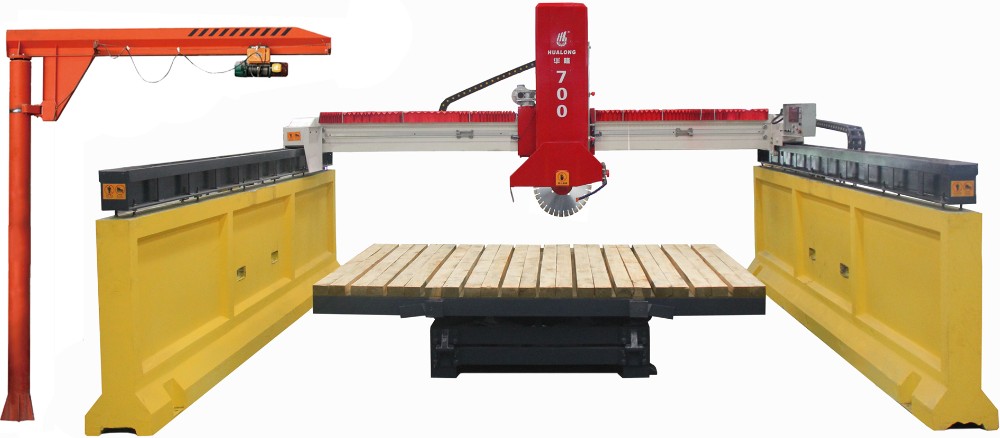

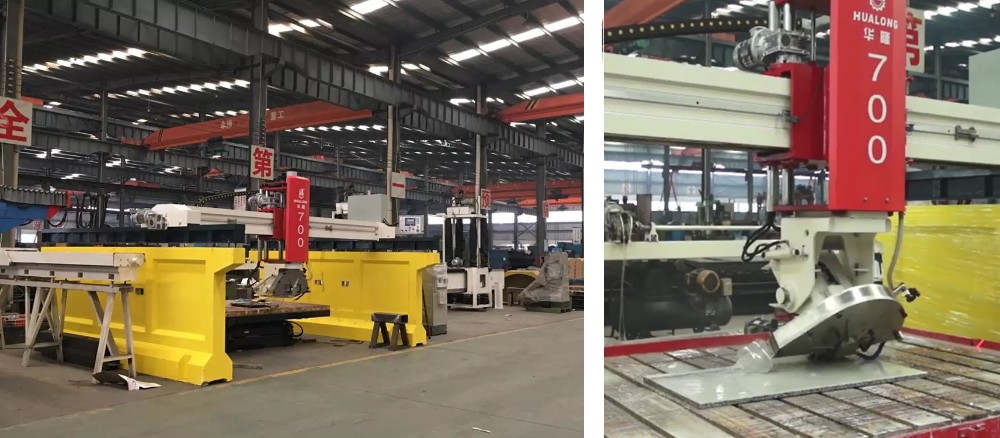

Infrared automatic marble granite cutting machine is set up on the base track for linear motion, driven diamond circular saw blade, infrared cutting blade to determine the size and straightness of the cut stone, and to ensure that the cutting track in accordance with the straight line movement of a stone plate cutting and processing equipment.

Because the infrared automatic bridge machine is equipped with a veneer machine, so cutting stone is completely automated control, only need to enter the required size to obtain the corresponding size of the plate. It is the preferred equipment for stone processing plant in recent years. In recent years, Hualong Stone Machinery Co., Ltd. has developed a machine head can be adjusted to the angle of the model, can cut bevelled edges, double bevelled edges, etc., greatly adapted to a variety of requirements for cutting edges.

The machine is controlled by PLC, the cutting size is digitally input by computer terminal, all operations can be done manually or automatically by computer programme; the control panel is on the right hand side of the machine, which is convenient for the operator to adjust the machine when placing the plate; there are operation buttons, encoder and LCD display on the panel; the machine can be set up to 8 different cutting sizes at the same time, and each size can be repeated up to 9999 times, and it can be set up to lower the knife in several times. Cutting mode; equipped with infrared knife instrument, can be accurately positioned; cutting feed speed adjusted by the frequency converter; saw blade driven directly by the motor, can be driven by the hydraulic transmission, automatic rotation of 90 °; the maximum cutting 3200mm × 2000mm plate; table can support 600kg, can be turned 0 ° ~ 85 °. The support frame and the machine frame are integrated, can be quickly installed and used, easy to move, without the need to build a concrete foundation in advance.
